Ingenuity and Insight





  • Upper Rotation




    at the top of the device allows the operator to manage the operation in a standing or sitting position.


  • Working channel:6.6Fr(2.2mm)
  • Lower Rotation




    The maximum  ±60° rotation function allows the operator to change the shaft’s angle by rotating.

    This enables more user precision and comfort.


  • Field of View:120°




    Wider field of view of 120° gives the operator a better visual experience.


  • Deflection 220° UP/DOWN




    Single-Use Cystoscope deflection capabulities of 220° up and down allow for optimal visualization throughout the whole bladder.


  •


    Excellent passive bending

    All areas of the bladder can be easily observed.



Specification

Product Code

SYV-HA100 with suction structure

Bending Angle

220° Up/Down

Outer Diameter of Insertion Section (OD)

5.4mm

Field of View

140°

Working Channel

2.2mm

Direction of View

0°

Working Length

380mm

Depth of Field

3-50mm

Total Length

700mm



Related Products

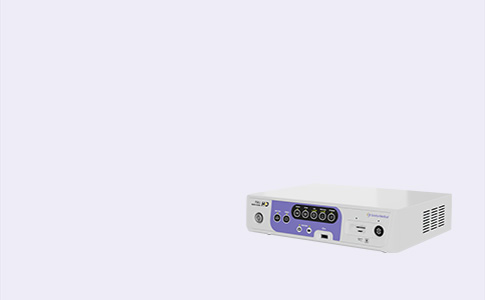

Endoscopic Image ProcessorHDVS-S100A
View More

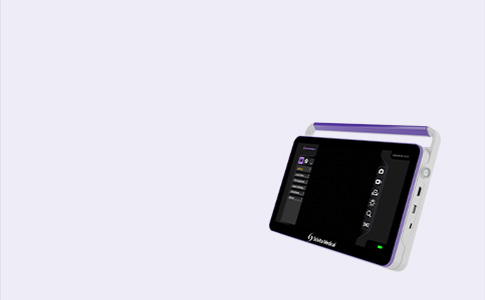

Endoscopic Image ProcessorHDVS-S200A
View More

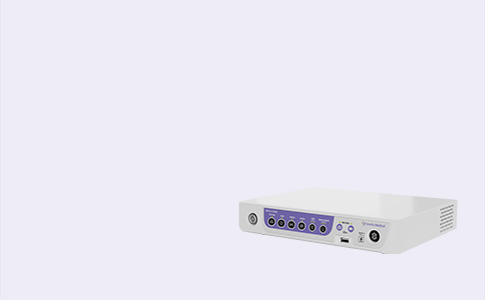

Full HD Visualization Endoscopic Image ProcessorHDVS-S300A
